Radial Shockwave Therapy Machine For Plantar Fasciitis

$1,786.26 CAD

The Radial Shockwave Therapy Machine is a portable, professional-grade shockwave therapy system designed for both clinical and home use. With adjustable intensity and frequency settings, it provides non-invasive pain relief, accelerates tissue healing, and improves circulation. Effective for musculoskeletal conditions, sports recovery, and men’s health, this compact and durable device offers a safe, drug-free solution backed by clinical evidence and lifetime support.

All listed prices include applicable taxes and service charges.

Description

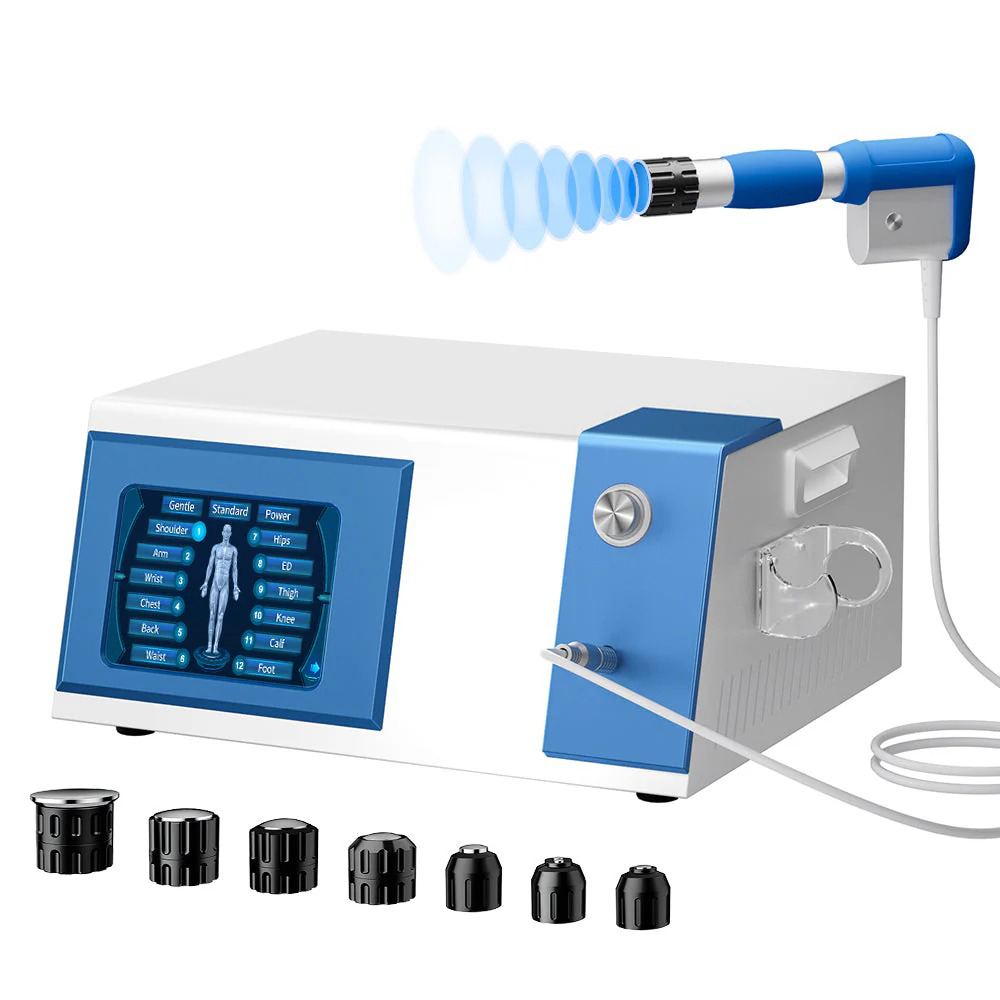

Introducing our state-of-the-art Radial Shockwave Therapy Machine

The Radial Shockwave Therapy Machine brings professional-grade, non-invasive shockwave therapy into the home and clinical environments. With customizable settings, robust build quality, and versatile therapeutic capabilities, it offers an effective path to pain relief, healing, and performance recovery.

Key Benefits & Therapeutic Effects

Enhances vascular regeneration, stimulating growth factor release and promoting the formation of new blood vessels. Boosts cell proliferation and differentiation, accelerating natural tissue regeneration. Improves blood circulation, facilitating oxygen and nutrient delivery to affected tissues. Promotes tissue healing, shortening recovery times for musculoskeletal injuries. Technical Features Adjustable Energy Intensity: Offers a wide range from 0.5 to 10 bars, making it suitable for gentle to deep tissue therapy. Variable Frequency Range: 1–21 Hz to accommodate diverse treatment needs. Efficient Cooling Mechanism: Includes a dual-cup system that expels moisture and excess air, maintaining consistent power delivery and prolonging device longevity. Compact & Portable: With dimensions of approximately 23 x 38.5 x 48 cm, weighing 15 kg, it’s robust yet mobile. User-Friendly Interface: Easy-touch controls make it practical for both home users and professionals. Durable & Cost-Effective: Backed by a 1-year warranty and lifetime customer support.

Specification

Weight	15kg/33lb
Treatment Modes	12
Screen Size	8 Inch
Set Frequency	1-21Hz
Energy	0.5 -10 Bar
Rated Voltage	AC110V-AC220V
Filter Cup	2
Color	Blue & White
Transmitter heads	7
Device Size	385 x 480 x 230mm

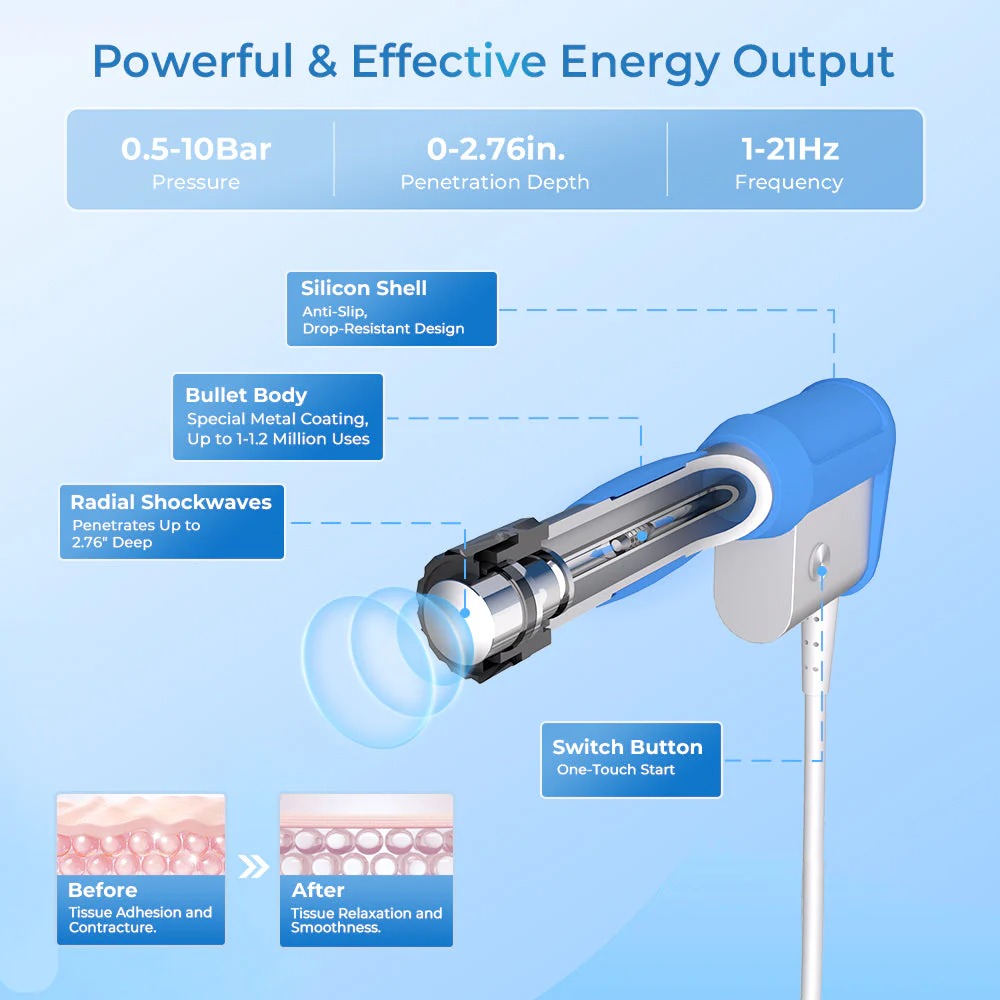

Ballistic Principle of Shockwave Generation

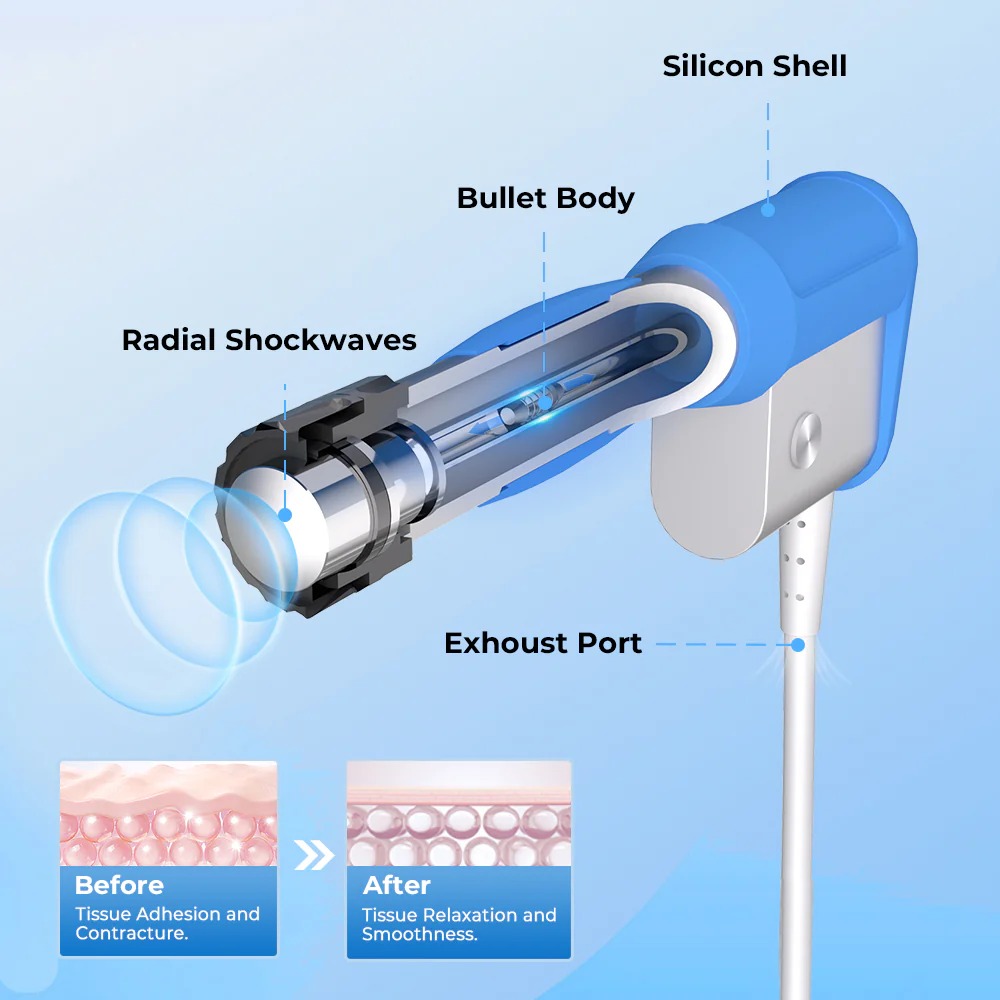

The shockwave system operates on the ballistic principle of shockwave generation. It forms a pressure wave through a projectile, accelerated by compressed air produced by an electronically-controlled ballistic-pressure compressor. This energy is then transferred from the projectile through the working head of the applicator into the client’s body. For effective treatment, the applicator’s end must maintain direct contact with the client’s skin and subcutaneous tissue.

Revitalize Your Recovery with Shockwave Therapy

Recovery Deserves The “Shockwave Therapy” Difference

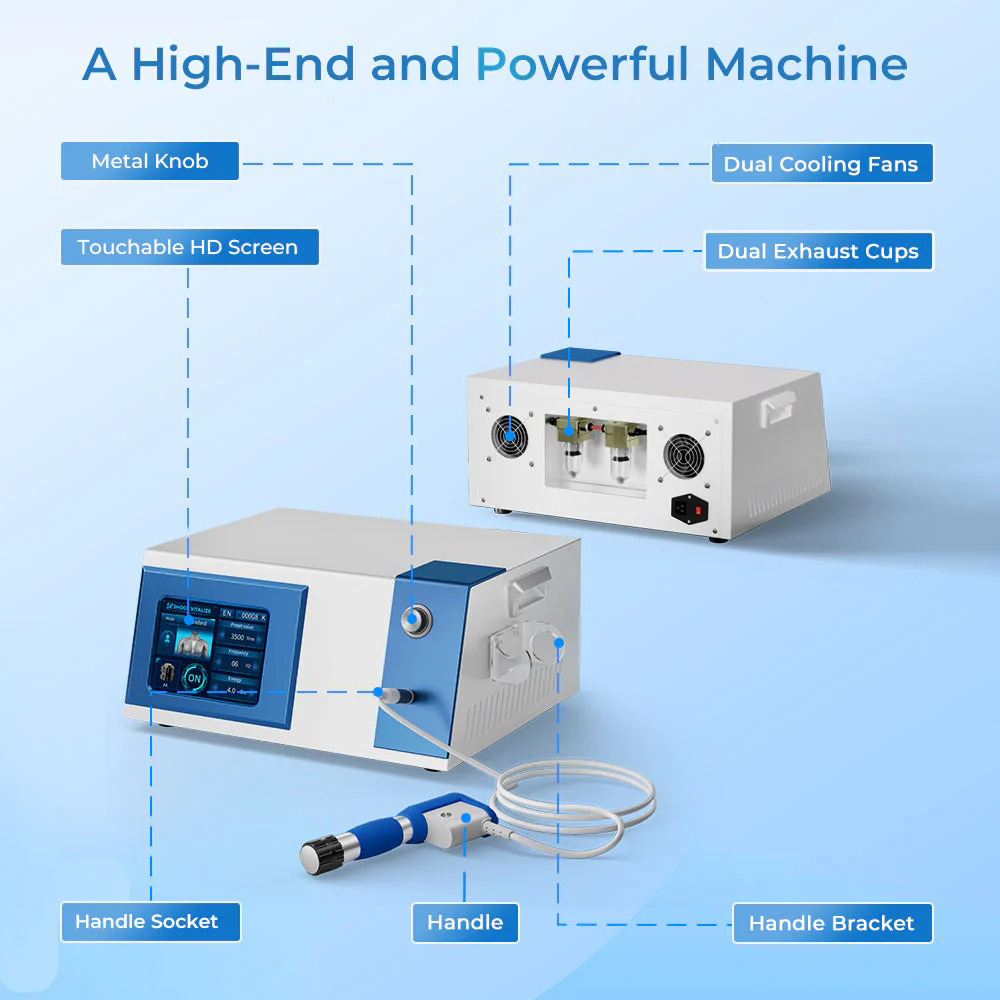

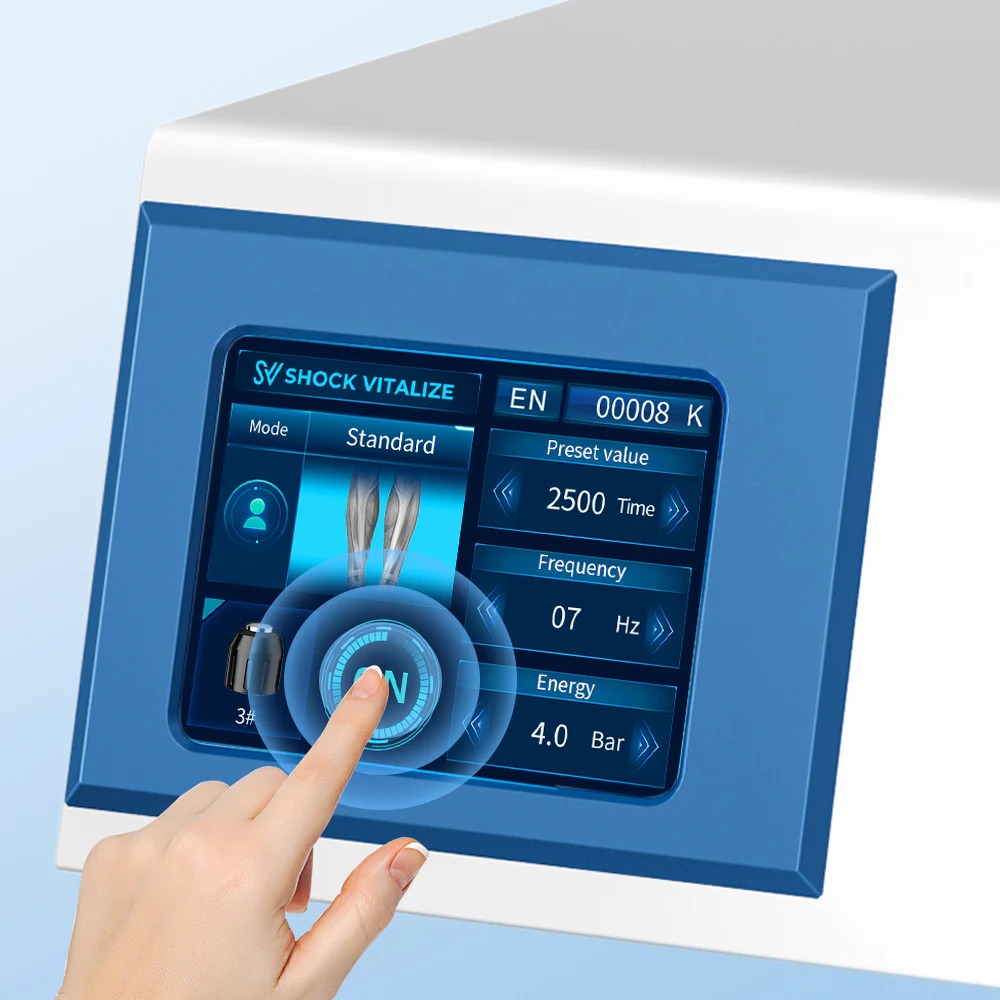

User-Friendly Interface, Simple Operation

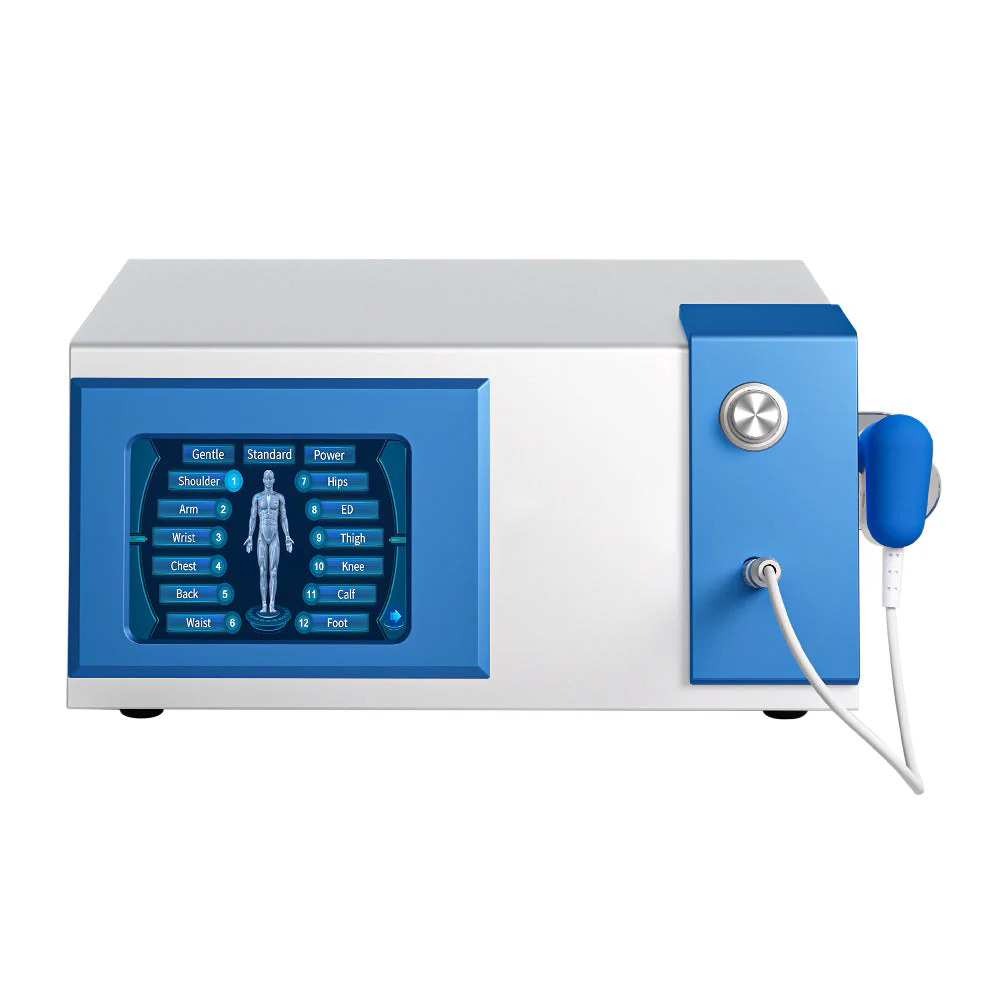

This shockwave system features a user-friendly touchscreen display, designed to allow easy control and adjustment of treatment parameters.

Customizable Treatment Sessions

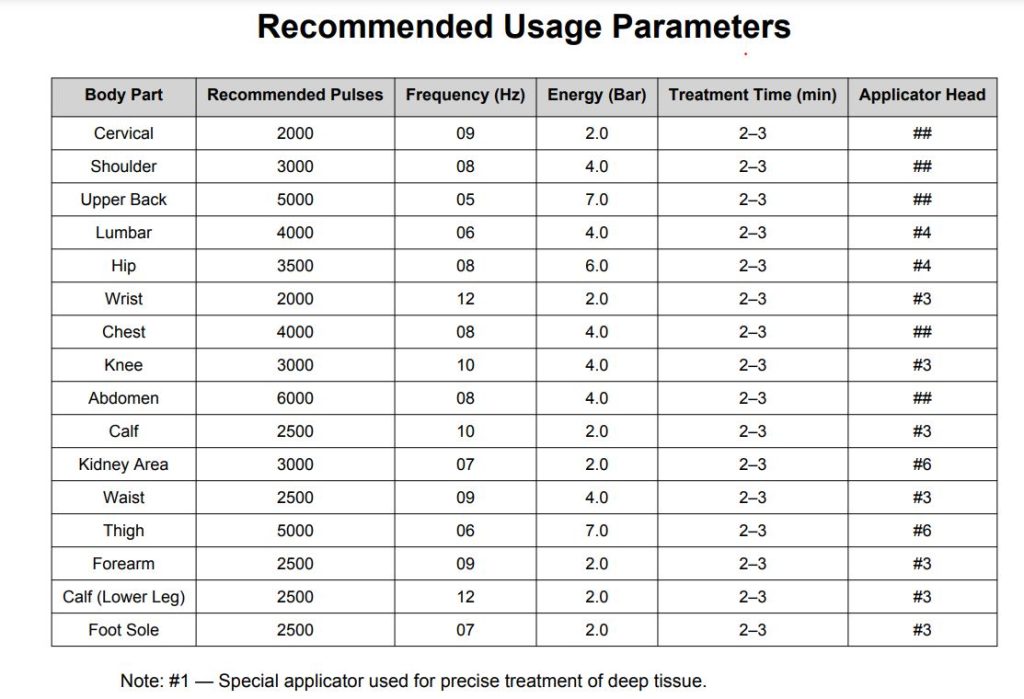

It offers 12 different modes of treatments, providing versatility and precision for various therapeutic needs.Choose from 12 pre-set body area treatments modes, each with 3 customizable intensity levels (Gentle, Standard, Power) to personalize your treatment session.

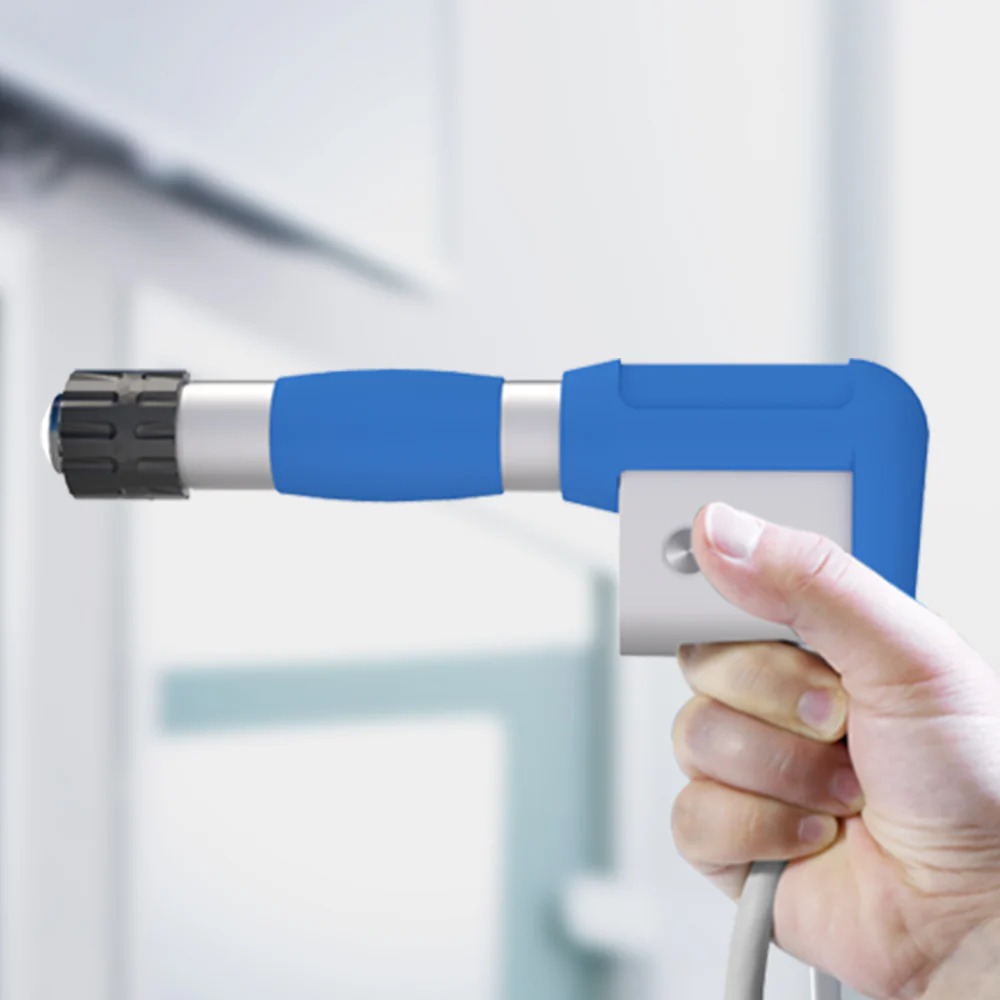

High-Quality Steel Handle

Crafted from premium steel, this handle provides superior durability and stability compared to plastic alternatives. It ensures consistent energy output and enhances the device’s longevity, delivering reliable performance in every treatment.

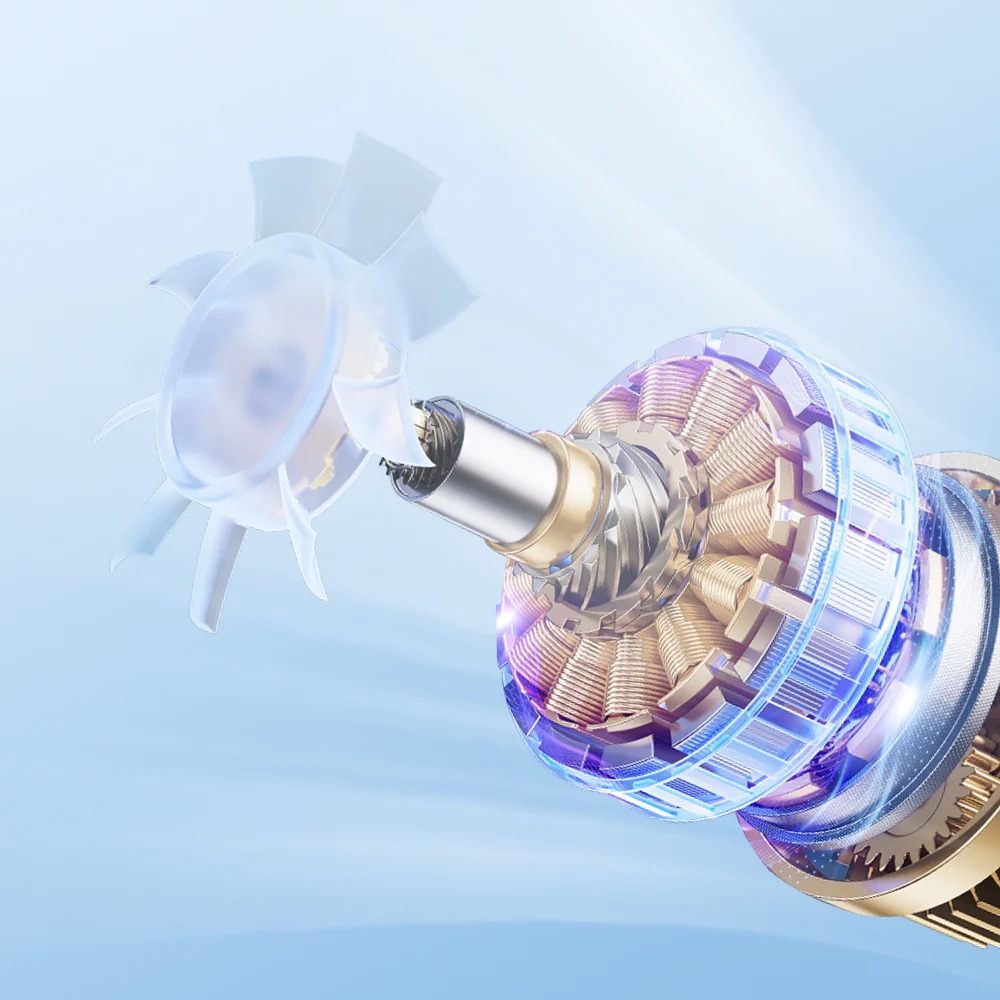

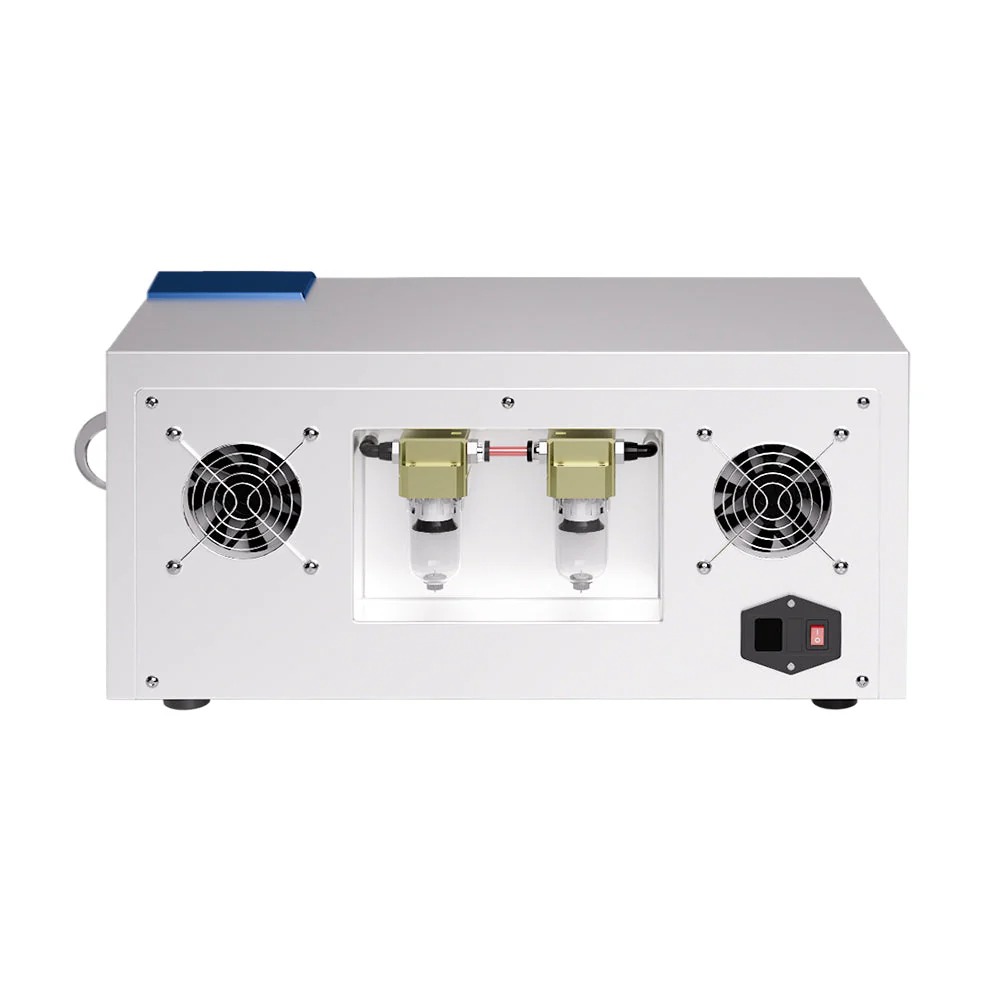

Advanced Dual Cooling Fan System

Equipped with dual cooling fans to effectively prevent overheating, this system ensures stable performance and dependable operation even during prolonged use.

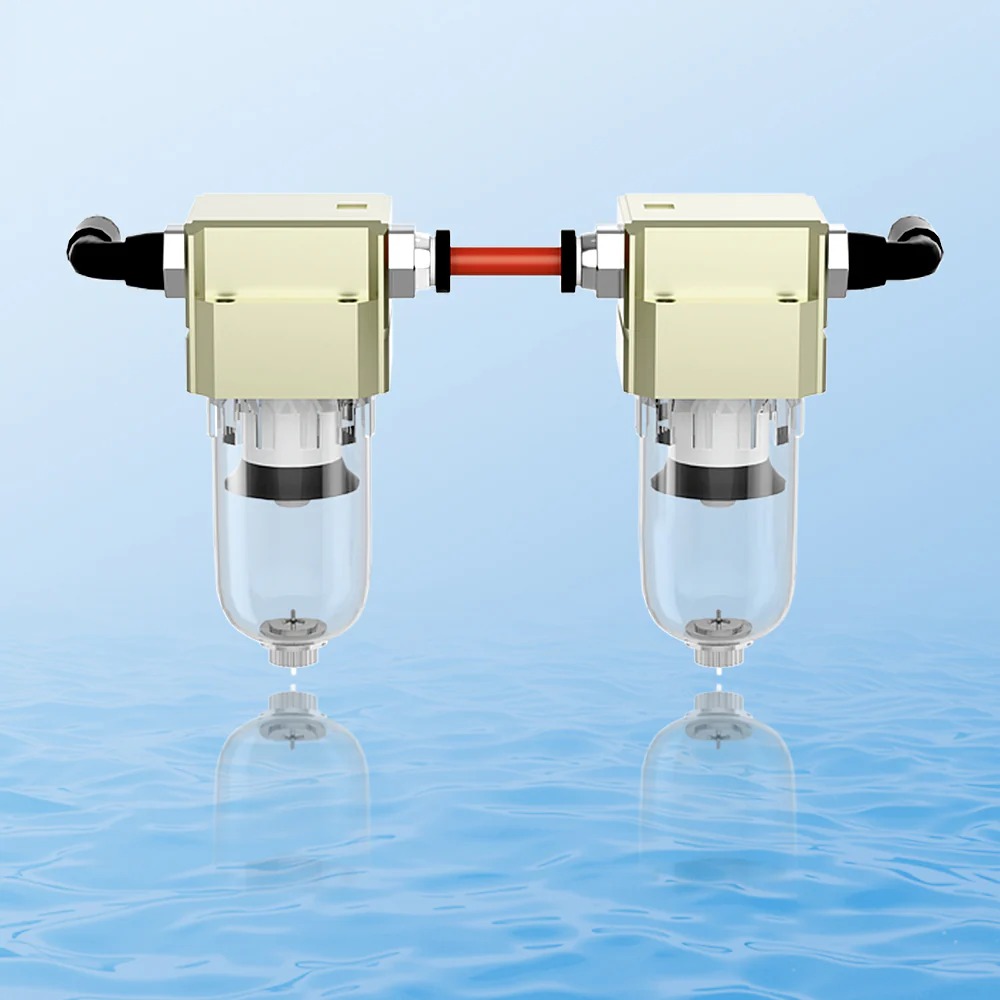

Efficient Dual-Cup Water & Air Discharge

Designed to remove moisture water and excess air, helps deliver consistent shockwave energy during treatment, prolonging the service life of the device.

Application

Significant Effects After Using Shockwave Therapy

Vascular Regeneration

Shockwave therapy enhances vascular regeneration by stimulating the release of angiogenic growth factors such as VEGF (Vascular Endothelial Growth Factor) and eNOS (endothelial nitric oxide synthase). These biological mediators promote neovascularization, leading to the formation of new microvessels and the expansion of existing capillary networks. Improved blood supply not only accelerates tissue oxygenation and nutrient delivery but also supports long-term healing, reduces ischemia, and restores normal physiological function in damaged or degenerative tissues

Cell Growth

Shockwave therapy stimulates cellular activity by enhancing metabolic processes within tissues. It promotes the proliferation and differentiation of stem cells, accelerates collagen synthesis, and supports angiogenesis, leading to faster regeneration of damaged structures. This process not only improves tissue repair but also contributes to long-term functional recovery and overall cellular health.

Blood Circulation

Shockwave therapy significantly improves hemodynamics by enhancing arterial elasticity, increasing microvascular blood flow, and boosting overall circulation volume. The mechanical stimulation triggers vasodilation and promotes nitric oxide release, which reduces vascular resistance and improves oxygen and nutrient delivery to tissues. Enhanced circulation accelerates cellular metabolism, supports faster removal of metabolic waste, and contributes to reduced inflammation, pain relief, and optimal tissue recovery.

Tissue Healing

Shockwave therapy accelerates the natural repair process by stimulating fibroblast activity, increasing collagen production, and enhancing extracellular matrix remodeling. This promotes faster closure of micro-injuries, strengthens connective tissues, and supports structural integrity. Additionally, the therapy modulates inflammatory responses, creating an optimal environment for regeneration and long-term healing. As a result, damaged muscles, tendons, ligaments, and soft tissues recover more efficiently, restoring both function and resilience.

How to Use the Machine:

First, insert the connector of the handpiece into the host’s power outlet, located on the front of the host.
Next, connect the power cord to the host’s power port on the back, and then insert the plug into a power socket.
Then, turn on the power switch, also located on the back of the host.
Finally, select the appropriate functional mode on the system.

Remark: Please start with a low power setting and gradually increase to ensure safety and comfort during use.

Precaution / Caution

When using a shockwave therapy device, immediately cease use if discomfort occurs. Maintain proper posture, particularly when sitting or sleeping. Avoid use on areas with tumors, lung tissue, major blood vessels/nerves, infections, epiphyseal plates, brain, or spine. It is also contraindicated for those with coagulopathy (including thrombosis), under immunosuppressive therapy, joint issues (fluid seepage or replacements), cognitive/mental disorders, sensory impairments, implanted devices like pacemakers, pregnancy, and open wounds.

Transmitter Heads

Maintenance of Handle Head Device

Replacement method of bullet body and maintenance of work handle

FAQ

How does shockwave therapy work?

Shockwave therapy works by delivering high-energy acoustic waves to the targeted area of the body. These waves are generated by a specialized device and then focused on the specific tissues needing treatment. Here’s how it works:

Stimulation of Healing Mechanisms: The acoustic waves penetrate the skin and reach the underlying tissues, such as tendons, ligaments, or muscles. This mechanical energy stimulates cellular signaling pathways, triggering the body’s natural healing response.
Enhanced Blood Flow: Shockwave therapy promotes increased blood circulation to the treated area. Improved blood flow delivers oxygen and nutrients essential for tissue repair, while also removing metabolic waste products that can contribute to inflammation and pain.
Breakdown of Scar Tissue: In conditions like tendinitis or chronic pain, there may be a buildup of scar tissue or calcifications within the affected tissues. Shockwave therapy helps break down these adhesions and calcifications, facilitating tissue remodeling and regeneration.
Reduction of Pain and Inflammation: By promoting tissue repair and breaking down scar tissue, shockwave therapy can effectively reduce pain and inflammation associated with various musculoskeletal conditions. It also has a neuromodulatory effect, altering pain perception and reducing pain signals transmitted to the brain.

Overall, shockwave therapy harnesses the body’s natural healing mechanisms to accelerate tissue repair, reduce pain, and improve function in conditions affecting the musculoskeletal system. The precise mechanisms of action are still being researched, but clinical studies have shown its effectiveness in treating a range of orthopedic and sports-related injuries.

Service and Maintenance

Our product is built to last, offering dependable performance for a generally trouble-free period of three to five years. Regular maintenance can be conveniently done at home – simply use a cotton bud to clean the air intake and filter to remove dust.
