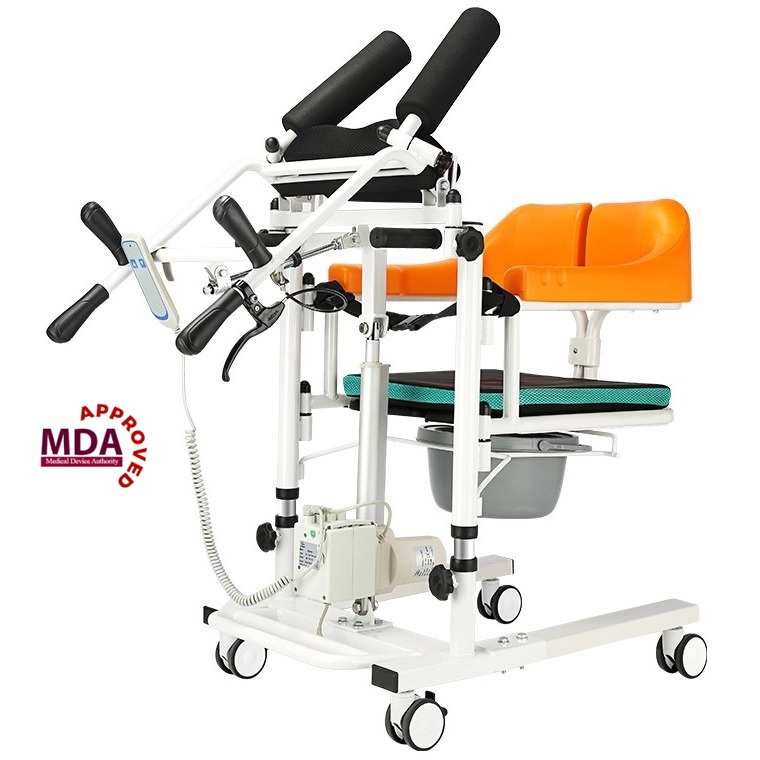

Electric Patient Transfer Lifting Chair

Introducing Our State-of-the-art Electric Patient Transfer Lifting Chair

Innovative Mobility Solution for Safer, Smarter, and Easier Care

The Electric Patient Transfer Lifting Chair is an advanced mobility and caregiving aid designed to ensure safe, efficient, and dignified patient transfers in a wide range of care settings. Combining electric height adjustment, multi-functional design, and robust engineering, it is the ideal solution for hospitals, nursing homes, rehabilitation centers, and home-based care.

Key Benefits

• Effortless Transfers: Electric lift mechanism with intuitive hand control eliminates the need for manual lifting, reducing strain and risk of injury for caregivers.

• Enhanced User Comfort: Smooth, stable lifting motion ensures a comfortable experience for patients during transfers.

• Versatile Applications: Functions as a transfer chair, commode chair, shower chair, and dining chair — minimizing the need for multiple devices.

• Optimized for Safety: 180° fully opening seat design and adjustable height range (48–68 cm) provide flexibility and safety when moving patients between beds, toilets, chairs, and wheelchairs.

Premium Construction

Built from high-strength carbon steel tubing with a hydrophobic powder-coated finish, this chair offers exceptional durability, water resistance, and corrosion protection. It supports a maximum load capacity of 180 kg (396 lbs), making it suitable for a wide range of users.

Care-Friendly Design

• Removable Commode Bucket: Enables toileting without leaving the chair, simplifying hygiene routines.

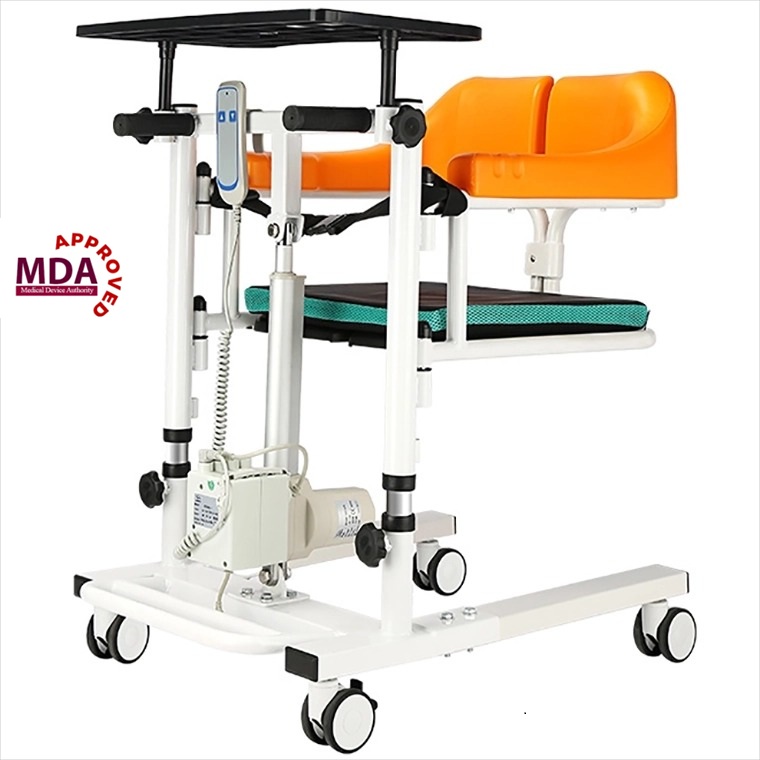

• Detachable Dining Tray: Allows convenient feeding or daily activities.

• Easy-to-Clean Surfaces: Designed for rapid cleaning and disinfection in clinical or home environments.

Certifications & Compliance

The product meets rigorous international standards, including MDA,CE, FDA, ISO9001, ISO13485, UKCA, and MDEL, guaranteeing compliance with global safety and quality requirements.

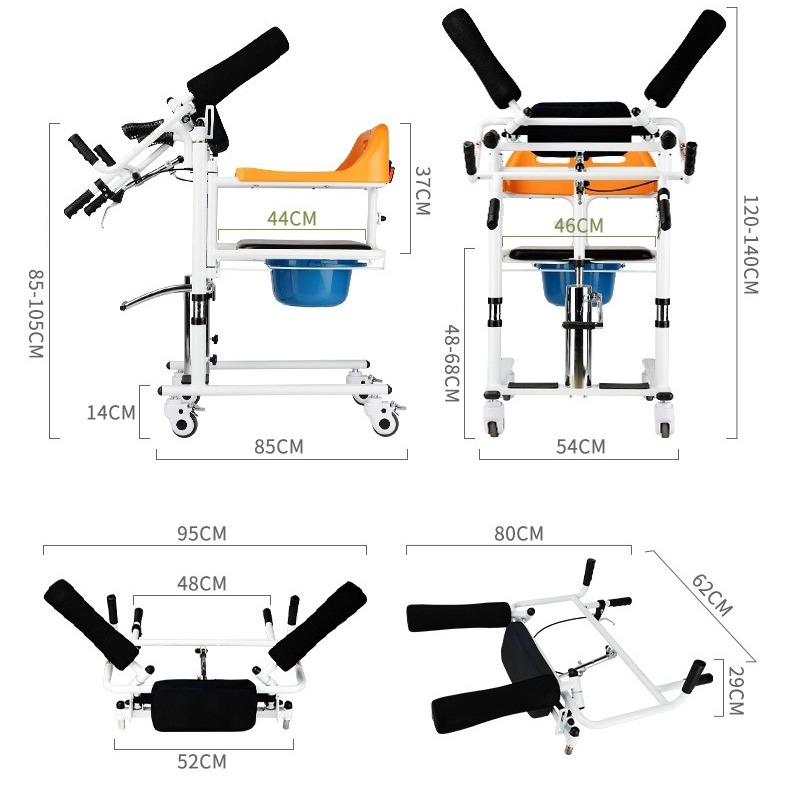

Specification

Parameter	Details
Material	High-strength carbon steel
Load Capacity	180 kg / 396 lbs
Lift Type	Electric
Seat Height Range	48–68 cm
Overall Dimensions	79 × 55 × 81.5 cm
Net Weight	32 kg / 70.55lbs
Functions	Transfer, toileting, showering, dining
Warranty	12 months

Experience Elegance in Relief: Your Electric Patient Transfer Lifting Chair Solution

Product Features

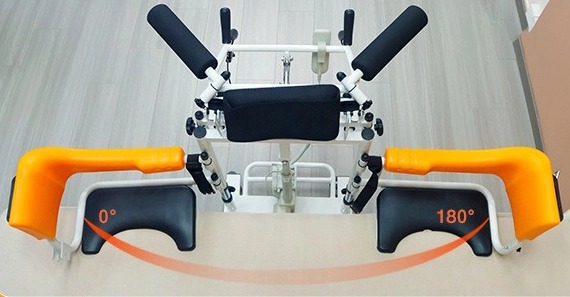

180° Opening And Closing Design

The seat features a 180° opening and closing design, enabling easy and convenient seating for users with limited mobility. Caregivers can simply position the two seat panels beneath the user’s hips and assist with a slight lift, allowing the user to be seated with minimal effort. The smooth, low-friction surface and gently sloped junction between the panels further facilitate effortless transfer onto the seat, enhancing both comfort and efficiency during care.

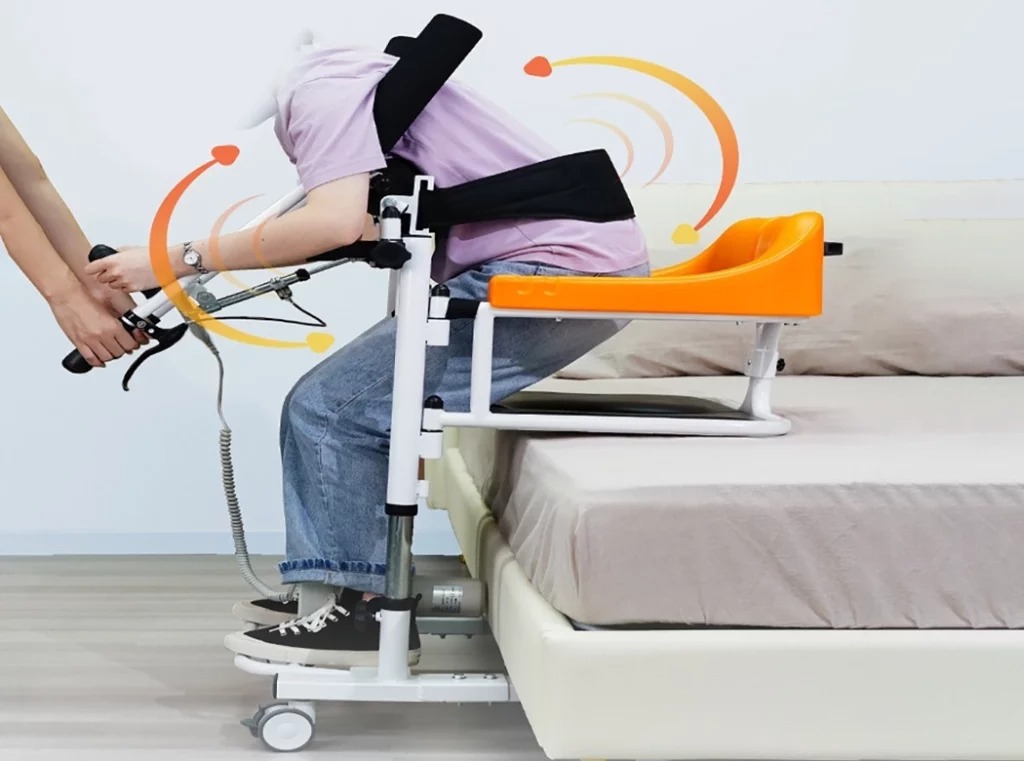

Practical Assisted Lifting Frame Design

The chair incorporates a practical assisted lifting frame designed to help raise the user’s body, enabling caregivers to effortlessly fold the two seat panels into position for seating. This feature significantly reduces strain on the caregiver’s waist and minimizes the risk of injury. For elderly users, including those with Alzheimer’s disease, the lifting frame allows caregivers to easily assist with toileting by gently raising the user and facilitating clothing adjustments, ensuring both convenience and comfort without causing discomfort to the user

Use Instructions for Electric Patient Transfer Lifting Chair

Always read and follow these instructions before operating the chair. This equipment must be used under the supervision of a trained caregiver.

---

1. Preparation Before Use

1. Check the Chair Condition

   • Inspect the frame, wheels, brakes, seat, and lifting mechanism for any signs of wear or damage.

   • Ensure all bolts and connections are secure.

   • Verify the battery is fully charged and the lift functions properly.

2. Prepare the Environment

   • Ensure the floor is level, clean, and free from obstacles.

   • Confirm doorway clearance (≥ 65 cm) and bed clearance (≥ 15 cm).

   • Adjust the bed height to ≤ 65 cm for safe transfers.

---

2. Transferring the Patient

Step 1 – Positioning the Chair

• Move the chair close to the bed, toilet, or target surface.

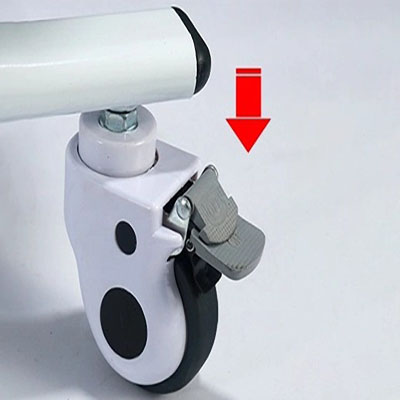

• Engage the wheel brakes to prevent movement.

Step 2 – Opening the Seat

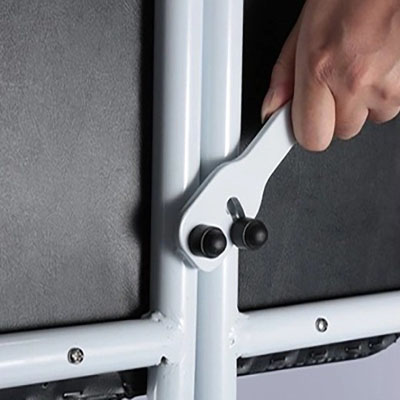

• Release the seat lock and rotate the seat panels outward (180°) to provide an open transfer space.

Step 3 – Assisting the Patient

• With caregiver support, help the patient shift forward so their hips are aligned over the seat area.

• Gently lower the patient into the chair, ensuring they are sitting securely.

Step 4 – Securing the Seat

• Rotate the seat panels back into position until they lock securely.

Step 5 – Adjusting Height

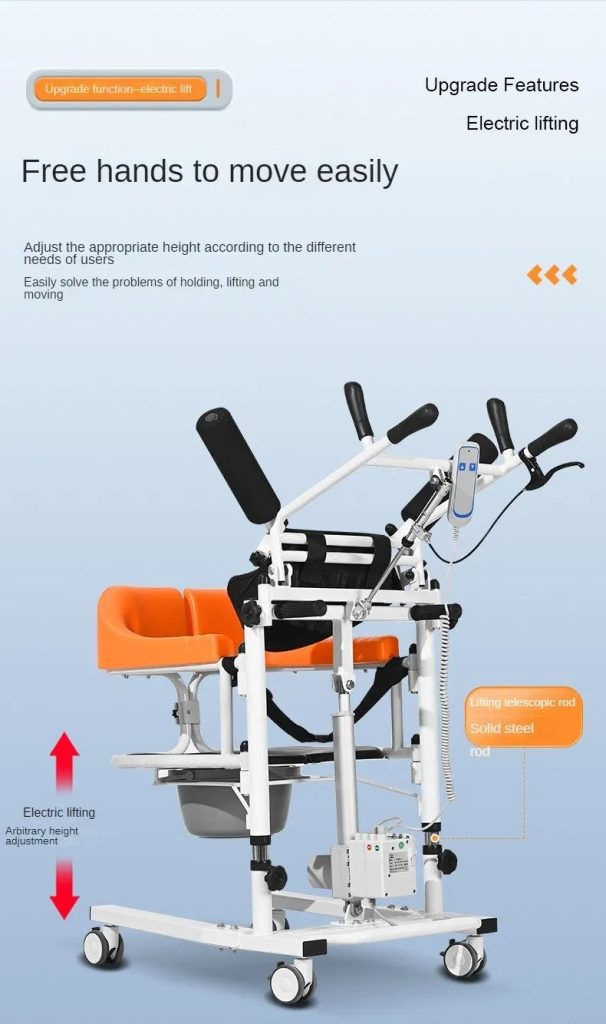

• Use the electric control to raise or lower the seat to the desired height (48–68 cm range).

• Always operate the lift slowly and steadily.

---

3. Using the Chair for Specific Purposes

• Toileting: Position the chair over a toilet or use the supplied commode bucket.

• Showering: Ensure the chair is in a waterproof-safe area and lock the wheels before bathing.

• Dining or Daily Activities: Attach the dining tray if needed and adjust seat height for comfort.

---

4. Moving the Patient

• Disengage the brakes only after the patient is securely seated.

• Move the chair slowly over smooth, flat surfaces.

• Avoid abrupt stops or sharp turns.

---

5. After Use

1. Return the seat to its lowest position before storage.

2. Switch off the power and disconnect the charger when not in use.

3. Clean and disinfect the seat, armrests, and any accessories.

4. Recharge the battery according to the manufacturer’s guidelines.

Precautions and Cautions for Electric Patient Transfer Lifting Chair – Safety Guidelines

Precautions Before Use

1. Patient Suitability

   • The user must be able to sit upright with minimal support; the chair is not suitable for patients who cannot maintain a sitting posture at all.

   • The patient’s weight must not exceed 180 kg (396 lbs).

2. Caregiver Supervision

   • The chair must always be operated by a trained caregiver or attendant.

   • Never allow unsupervised operation by the patient.

3. Space & Clearance Requirements

   • Bed clearance (under-bed height) must be ≥ 15 cm to allow the chair to slide close to the bedside.

   • Doorway width should be ≥ 65 cm to move the chair between rooms.

   • Bed height should be ≤ 65 cm so the seat can align with the bed for smooth transfers.

4. Surface Conditions

   • Use only on flat, stable surfaces. Avoid slopes, uneven flooring, or thresholds that may cause the small wheels to jam or tip.

---

Cautions During Use

1. Secure Positioning

   • Ensure all brakes are engaged before transfers or lifting.

   • Confirm the seat is properly locked before moving the chair.

2. Operation of Electric Lift

   • Operate the lift slowly and steadily to avoid sudden jerks.

   • Do not overload or force the lift beyond its maximum range (48–68 cm seat height).

3. Patient Safety

   • Always support the patient during transfers.

   • Avoid sudden movements or abrupt stops while the patient is seated.

4. Environment Awareness

   • Keep the path clear of obstacles before moving the chair.

   • Do not use the chair outdoors in wet or slippery conditions unless specifically rated for it.

5. Maintenance & Inspection

   • Inspect all parts (frame, wheels, brakes, seat, lifting mechanism) before each use.

   • Do not use if there are loose bolts, cracks, or electrical faults.

   • Charge the battery according to manufacturer instructions and keep it dry.

---

Important Safety Notes

• This chair is not designed for lifting patients directly from the floor.

• It is not a transportation wheelchair for long distances — it is for short transfers only.

• All lifting activities carry some inherent risk; follow proper patient handling procedures to minimize hazards.

Packing List

• 1 × Electric Transfer Lift Chair – Fully equipped main unit for safe and efficient patient transfers.

• 1 × Food Tray – Detachable tray for convenient dining and daily activities.

• 1 × Chamber Pot – Removable commode bucket for hygienic toileting use.

• 1 × Assembly Tools Set – Complete set of tools required for quick and easy installation.

• 1 × Assisted Lifting Frame – Support frame designed to aid in safe and effortless patient positioning.
